RF-FRHW5085100-ARA

THE
SEW-ON
Flame Resistant (Fire Retardant)
Home Wash ( Non-Industrial Wash)
Retro-Reflective Tape

Why Choose This Item?

Combine these distinguished performance into your final product

High Intensity Reflective Performance | High Qualified Raw Material | Mutiple International Norms Conformance



FR IW 2.0


Top Quality Level

Performance of Home Washing Resistance is at of the top quality level on the market


24/7/365 Support

We are offering seamless technical support


Aramid

Inherent Flame Resistance never be washed away


Light-Weight

Soft and Light-Weight improve mobility for wearers

Overview

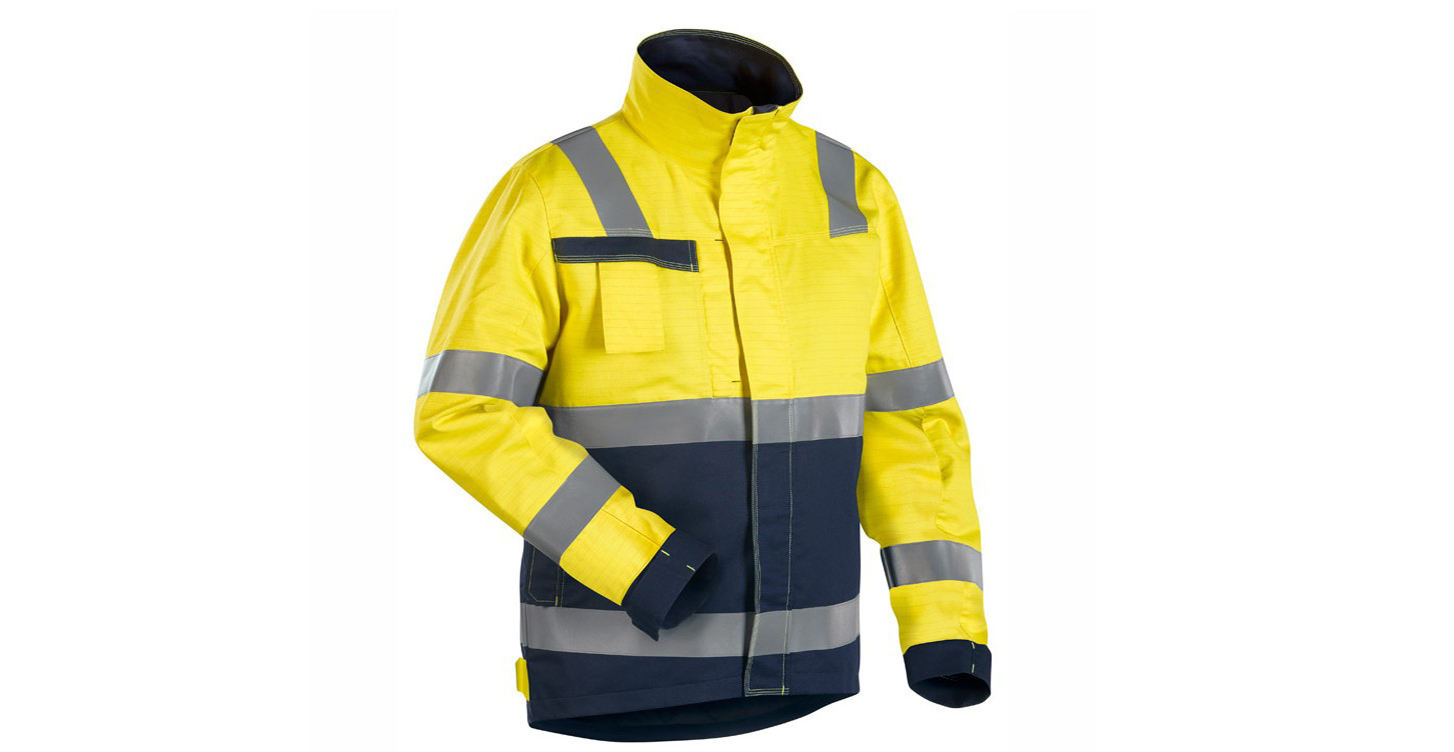

V-REFLEX Reflective Material - Flame Resistant and Home Wash Retro-Reflective Tape/Trim  is designed for use on flame resistant, and arc flash resistant safety garments.

V-REFLEX Reflective Material - Reflective Tape/Trim is composed of wide angle, exposed silver color retro-reflective lenses, bonding to a durable inherent flame resistant textile fabric or fire treated cotton textile fabric.

By intregrating function of high visbility and high retro-reflectivity on the same surface seamlessly, this series of FR reflective tape conform to mutiple national standards for many types of safety garment, especially fire fighting garment.

When properly used, V-REFLEX Reflective Material - Flame Resistant and Home Wash Retro-Reflective Tape/Trim help enhance the visibility of the wearer in nighttime or low-light conditions when illuminated by a light source such as headlights, by returning the light back toward the original source and reaching the automobile driver’s eye.

The Durability of washing resistance was determined by the tests which were carried out according to ISO 6330. Options of 25, 40, 50, 100 home wash cycles are available at present. The real durability of reflective tape in use may vary as the cleaning conditions are different from the time to time. Many more other conditions of using/exposing reflective tape effect the its real durability as well.

Main Feature

Material:                Aramid

Technoligy:            Micro Glass Bead

Daytime Color:      Silver

Reflective Colot:    Bright White

Attachment Type:  Sew on

Logo Printing:        Yes

OEM Size:             Yes

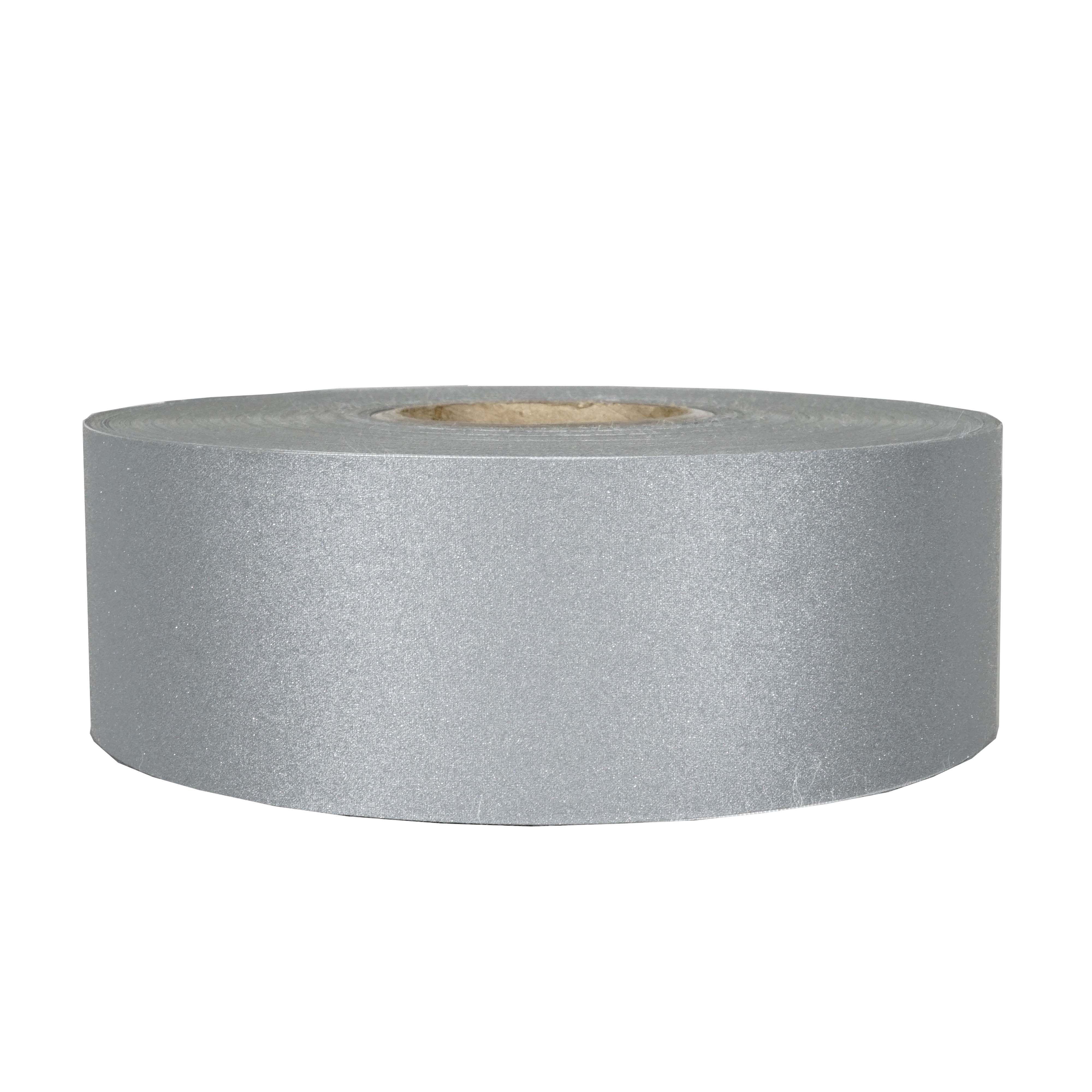

Standard Size:      5cm*50m per Roll


Physical Performance

V-REFLEX™ Reflective Material – Retro-Reflective Fabric/Tape meets or exceeds the following specifications as noted. All RA values are over 100 cd/lux/m2 measured at +5.0° entrance angle and 0.2° observation angle after tests are carried out according to following test method

Retro-reflectivity (initial): ANSI-ISAE 107-2010 level 2 , EN ISO 20471

OEKO-TEX 100: Article Class II

Abrasion: 5000 cycles (EN 530 Method 2) | RA  ≥ 100

Flexing: 7500 cycles (ISO 7854 Method A) | RA  ≥ 100

Cold Fold: -20° (ISO 4675) | RA  ≥ 100

Temperature Variation: 50 hours @ 50 °C and 20 hours @ -30 °C | RA  ≥ 100

Home Wash: 50 cycles @ 85~92°C (ISO 6330) | RA  ≥ 100

Dry-Cleaning: 100 cycles (ISO 3175) | RA  ≥ 100

Wet Reflectivity: ANSI-ISAE 107-2010, EN ISO 20471 | RA  ≥ 100

Industrial Wash: N/A

Flame Resistant and Fire Retardant:

  • EN ISO 14116:2008; EN ISO 11611:2015; EN ISO 11612:2015;
  • NFPA 1971:2013; NFPA 1977:2016; NFPA 2112:2012

Meaning of Product Codes

RF: Reflective Fabric (Sew-On)

FR: Flame Resistant (Performance, Function)

HW: Home Wash (Application, Dedication)

5085100: 50 Home Wash Cycles at 85~92 oC (Tested to ISO 6330), 100 Dry-Cleaning Cycles (Tested to ISO 3175)

ARA: Aramid Textile Backing Fabric

V: Customized logos marked on the surface of reflective surface by laser

P: Customized perforated-patterns

The durability of above descriptions were determined by laboratory testing. Product codes are just general descriptions of the key features of reflective tape.


Retro-reflective Performance

V-REFLEXTM Reflective Material - Silver (Silver-Gray) Retro-Reflective Fabric/Tape exceeds the minimum reflectivity requirements of EN ISO 20471, ANSI-ISAE 107 Level 2, when tested at e = 0° or e = 90° in accordance with the procedures stated on standards. Minimum coefficients of retro-reflection required by standards are shown as below table.

Observation Angle

Entrance Angle (β1, β2=0)

20°

30°

40°

0,20°(12’)

330

290

180

65

0,33°(20’)

250

200

170

60

1,00°(1°)

25

15

12

10

1,50°(1°30’)

10

7

5

4

Measured on new product at +5.0° entrance and 0.2° observation angles, V-REFLEXTM Reflective Material - Silver (Silver-Gray) Retro-Reflective Fabric/Tape has retro reflective performance as below table.

Initial Average  RA

Minimum RA

500

330

Home Wash (Domestic Laundry) Guidelines

A colored clothing wash program without pre-wash should be used. Follow below recommendation could maintain the duability of retro-reflective to its maxium lifespan.

Recommendation:

  1. Detergent: Brand powdered household detergents should be used.
    • Refer to the detergent manufacturer?s recommendations for dosage in areas of high water hardness and for various degrees of garment soiling.
  2. Wash temperature range: 15°C to 60°C
    • Some items could be extended to be home-washed with a wider range of washing temperature than above.
    • Some items could be applicable to wash temperature ranging from 0°C to 90°C for those garment requiring harsher cleaning. Read the physical performance of each reflective tape for the details.
  3. Max. Wash time at highest wash temperature: 12 minutes
  4. Max. Program time: 50 minutes
  5. Use of temperatures lower than 60°C will increase the lifetime of the reflective material.
  6. Actual lifetime will be dependent upon the detergent system and list dosage level.
  7. Load factor higher than 65% might lead to enhanced abrasion of the retro-reflective material

Drying Conditions

Tumble Dry: Tumble drying should be performed in a commercially available household dryer

Air Drying: Line drying is recommended where possible.

Hang-Up Drying: on line or rack

Tumble drying and tunnel/air drying are both recommended and applicable to this series of retro-reflective tape. Follow below recommendation will prolong the durability of product.

    • Using the medium dry setting.
    • Exhaust temperature should not exceed 90°C.
    • Do not overdry.

Dry Cleaning Conditions

Cleaning process should be based on a pre- and main-bath only.

For P it is recommended to only use pure perchloroethylene.

Adjust load and solvent level to give a moderate mechanical action.

  • Max. solvent temperature: 30°C
  • Recommended drying temperature: 48°C

Care and Maintenance Instructions

Washing/cleaning conditions harsher than those recommended below could significantly diminish the brilliance of the retro-reflective performance and shorten the product?s lifetime. Therefore, the instructions must be strictly followed.

  • No pre-soaking.
  • No application of high alkaline products (e.g. heavy duty products or stain removal products).
  • No application of solvent detergents or micro-emulsions.
  • No additional bleaches.
  • Do not over-dry. Reflective material temperature should not exceed 90°C at any time during drying.

Special Cleaning Instructions

  • For application on rainwear, a regular fluorocarbon treatment of the garment is recommended.
  • Chemical splashes should be removed with a soft, dry cloth. Cleaning the garment the same day is recommended.
  • Splashes of strong acids or alkalis should immediately be neutralized with plenty of water.
  • Contamination with toxic or poisonous substances or biocontamination will require the application of a specific decontamination process.
  • Application of high alkaline products, high pH-products, bleaches etc. is not recommended.
  • Do not over-dry. The temperature of the material should not exceed 90°C at any time during drying.

Don't Use Additional Bleach

  • No chlorine bleach.
  • No bleaches on oxygenic basis (e.g. sodium perborate bleaches).
  • Do not store a wash batch even in a low concentration of bleach.

Product Application Guideline

We recommend that all customers, in accordance with good manufacturing practices, establish an ongoing quality system which includes maintaining lot/roll identification throughout the garment production process.

Customer should also store input materials and final products in accordance with manufacturer recommendations, as well as implement continuous testing throughout their production and on their finished garments that reflects their garment needs.

Cutting

Die-cutting is recommended, although it can also be hand-cut or guillotined.

Note: Use very sharp cutting knives only and cut from the reflective side.

Sewing

For the best results, sew in place using a lockstitch and with no more than 12 stitches per inch (2.54 cm), and not less than 5/64? (2 mm) from the edge of the reflective fabric. Recommend for applying to light and medium weight fabrics.

Printing

Prior to printing, wiping the surface with a soft cloth lightly dampened with isopropyl alcohol may help ink adhesion

Printed areas will not be retro-reflective.

  • Screen Printing - Images may be printed on the surface of V-REFLEX? Reflective Material - Reflective Fabric. All inks should be continuously tested to ensure acceptable adhesion in the event of change occurring in the manufacturing process or composition of the ink. Prior to printing, wiping the surface with a soft cloth lightly dampened with isopropyl alcohol may help ink adhesion. Printed areas will not be retro-reflective.
  • Sublimation Printing - This printing method is applicable to V-REFLEX? Reflective Material - Reflective Fabric.

IMPORTANT

Images may be printed on the surface of reflective material ? fabrics. All inks should be continuously tested to ensure acceptable adhesion in the event of changes occurring in the manufacturing process or composition of the ink.

Test each application according to appropriate care instructions required for the finished product.

Actual life of V-REFLEXTM Reflective Material - Retro-Reflective Fabric/Tape depends on cleaning methods and wear conditions.


Handling Precautions

V-REFLEXTM  Reflective Material - Reflective Heat Transfer Film/Tape contains an aluminum layer as part of their construction. Blemishing of this aluminum layer can occur if surface of the product has direct contact from hands during application and is then exposed to hot and humid conditions, greater than 26.7 °C (80 °F) and greater than 70% relative humidity, for a period of weeks. These blemishes do not affect performance of the product. But potential blemishes should be carefully considered as an important risk in marketing of end-use products.

V-REFLEXTM  Reflective Material - Reflective Heat Transfer Film/Tape contains an sand-feeling reflective layer which is composing of an eco-friendly heat activated adhesive. Chemical moisture, liquid, oil, or other chemical elements may lead to a series of chemical reactions for a certain period of time, then result in a series unexpected subsequence on the reflective layer. Any remains of chemical elements happen to direct contacting to surface of fabric should be cleaned immediately.

We recommend that all customers, in accordance with good manufacturing practices, establish an ongoing quality system which includes maintaining lot/roll identification throughout the garment production process.

Customer should also store input materials and final products in accordance with manufacturer recommendations, as well as implement continuous testing throughout their production and on their finished garments that reflects their garment needs.

For lamination operations, customers should periodically check their equipment to ensure that the temperature set point matches the platen or roll temperature and that the temperature is uniform across the lamination area.

Other Important Information

Specific Safety Information

Various environmental factors, like line of sight, rain, fog, smoke, dust and visual noise can influence retroreflectivity.

  • The reflective intentsity of retro-reflective tape can also be diminished in extreme weather conditions.
  • Fog, mist, smoke and dust can scatter the light from headlights, the wearer must be aware that detection distance will be severely reduced.
  • Visual noise (contrast variations in the visual field) decreases the contrast of the reflective material with the background and affects the visibility in low-light conditions.

Maintenance Misuse

  • No harsh mechanical treatment, e.g. abrasion with wire brushes or sand paper.
  • No uniform coating or spraying of oils, protective waxes, inks or paint.
  • No application of products such as leather spray or shoe shine.

Product Storage

  • Store in a cool, dry area and use within 1 year of receipt.
  • Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton or suspended horizontally from the core via a rod or pipe.
  • Cut sheets should be stored flat.

Eco-Friendly Raw Materials

OEKO-TEX 100
  • OEKO-TEX 100 Certification
  • No Health Harmful Elements in Products

Customize Perforating Designs

Lightweight & Breathable
  • Customize Your Own Designs of Perforation.
  • Style of Perforation Not To Be Always The Same. Garment Designer, Fashion Makers Love This Very Much!

Third Parties Certify Performance

SATRA, TUV, CalCoast ...
  • Many Labs and Testing Agents Have Certified This Series of Reflective Tape

High Temperature Drying

Tumble Drying
  • 90 Degree Celsius Industrial Tumble Drying Applicable to All Items
  • Applying To Higher Than 100 Degree Celsius Industrial Tunnel Drying Will Decrease The Lifespan of This Series of FR Retro-Reflective Tape

Up-Lifting Brands

Your Logo on Frontside
  • Laser Marking Your Logos, Brands, Images,... On the Frontside of Reflective Tape.
  • Quality Garment Producers, Brands Owners, New Brands Advertisers, Brands Creators, ... Could Not Miss This

Increasing Sales

Your Logo on Backside
  • Print Your Logos, Brands, and Other Marketing Titles on The Backside of Reflective Tape.
  • Distributors, Wholesalers, Exclusive Agent, New Players in This Industry, Brands Advertisers, ... Could Not Miss This.
