V-REFLEXTM Reflective Material - Flame Resistant and Home Wash Retro-Reflective Tape/Trim (Above Product Code) is designed for use on flame resistant, and arc flash resistant safety garments.

V-REFLEXTM  Reflective Material - Reflective Tape/Trim is composed of wide angle, exposed silver color retro-reflective lenses seamlessly integration in the middle of a high visible fluorescent lime-yellow or fluorescent orange layer,  bonding to a durable inherent flame resistant textile fabric or fire treated cotton textile fabric.

By intregrating function of high visbility and high retro-reflectivity on the same surface seamlessly, this series of FR reflective tape conform to mutiple national standards for many types of safety garment, especially fire fighting garment.

When properly used, V-REFLEXTM  Reflective Material - Flame Resistant and Home Wash Retro-Reflective Tape/Trim help enhance the visibility of the wearer in nighttime or low-light conditions when illuminated by a light source such as headlights, by returning the light back toward the original source and reaching the automobile driver's eye. The high visible (fluorescent) parts on the surface of retr-reflective tape give off fluorescent looking in the daytime to help wearers standing out of the working places.

V-REFLEXTM Reflective Material - Retro-Reflective Fabric/Tape meets or exceeds the following specifications as noted. All RA values are over 100 cd/lux/m2 measured at +5.0° entrance angle and 0.2° observation angle after tests are carried out according to following test method

Retro-reflectivity (initial): ANSI/ISEA 107-2010 level 2 , EN ISO 20471

OEKO-TEX 100: Product Class II

Abrasion: 5000 cycles (EN 530 Method 2) | RA  > 100

Flexing: 7500 cycles (ISO 7854 Method A) | RA  > 100

Cold Fold: -20° (ISO 4675) | RA > 100

Temperature Variation: 50 hours @ 50 °C and 20 hours @ -30 °C | RA  > 100

Home Wash: 50 cycles @ 60°C (ISO 6330) | RA  > 100

Dry-Cleaning:  30 cycles (ISO 3175) | RA  > 100

Wet Reflectivity: ANSI/ISEA 107-2010, EN ISO 20471 | RA  > 100

Flame Resistant and Fire Retardant:

  • EN ISO 14116:2008; EN ISO 11611:2015; EN ISO 11612:2015;
  • NFPA 1971:2013; NFPA 1977:2016; NFPA 2112:2012
Physical Performance...

V-REFLEXTM Reflective Material - Retro-Reflective Fabric/Tape exceeds the minimum reflectivity requirements of EN ISO 20471, ANSI/ISEA 107 Level 2, when tested at e = 0° or e = 90° in accordance with the procedures stated on standards. Minimum coefficients of retro-reflection required by standards are shown as below table.

Coefficient of Retro-reflection * (R' or RA ) cd/lux/m2

Observation Angle

Entrance Angle (?1, ?2=0)

5°

20°

30°

40°

0,20°(12')

330

290

180

65

0,33°(20')

250

200

170

60

1,00°(1°)

25

15

12

10

1,50°(1°30')

10

7

5

4

Measured on new product at +5.0° entrance and 0.2° observation angles, V-REFLEXTM Reflective Material -  Retro-Reflective Fabric/Tape typically has retro reflective performance as below table.

Initial Average  RA

Minimum RA

500

330
Retro-reflective Performance...

A colored clothing wash program without pre-wash should be used. Follow below recommendation could maintain the duability of retro-reflective to its maxium lifespan.

Recommendation:

  1. Detergent: Brand powdered household detergents should be used.
    • Refer to the detergent manufacturer's recommendations for dosage in areas of high water hardness and for various degrees of garment soiling.
  2. Wash temperature range: 15°C to 60°C
    • Some items could be extended to be home-washed with a wider range of washing temperature than above.
    • Some items could be applicable to wash temperature ranging from 0°C to 90°C for those garment requiring harsher cleaning. Read the physical performance of each reflective tape for the details.
  3. Max. Wash time at highest wash temperature: 12 minutes
  4. Max. Program time: 50 minutes
  5. Use of temperatures lower than 60°C will increase the lifetime of the reflective material.
  6. Actual lifetime will be dependent upon the detergent system and list dosage level.
  7. Load factor higher than 65% might lead to enhanced abrasion of the retro-reflective material

Drying Conditions

Tumble Dry: Tumble drying should be performed in a commercially available household dryer

Air Drying: Line drying is recommended where possible.

Hang-Up Drying: on line or rack

Tumble drying and tunnel/air drying are both recommended and applicable to this series of retro-reflective tape. Follow below recommendation will prolong the durability of product.

    • Using the medium dry setting.
    • Exhaust temperature should not exceed 90°C.
    • Do not overdry.

Dry Cleaning Conditions

Cleaning process should be based on a pre- and main-bath only.

For P it is recommended to only use pure perchloroethylene.

Adjust load and solvent level to give a moderate mechanical action.

  • Max. solvent temperature: 30°C
  • Recommended drying temperature: 48°C
Home Wash Guideline...

Store in a cool, dry area and use within 1 year of receipt.

Rolls should be stored in their original cartons, whilst partially used rolls should be returned to their carton or suspended horizontally from the core via a rod or pipe.

Cut sheets should be stored flat.

Product Storage...

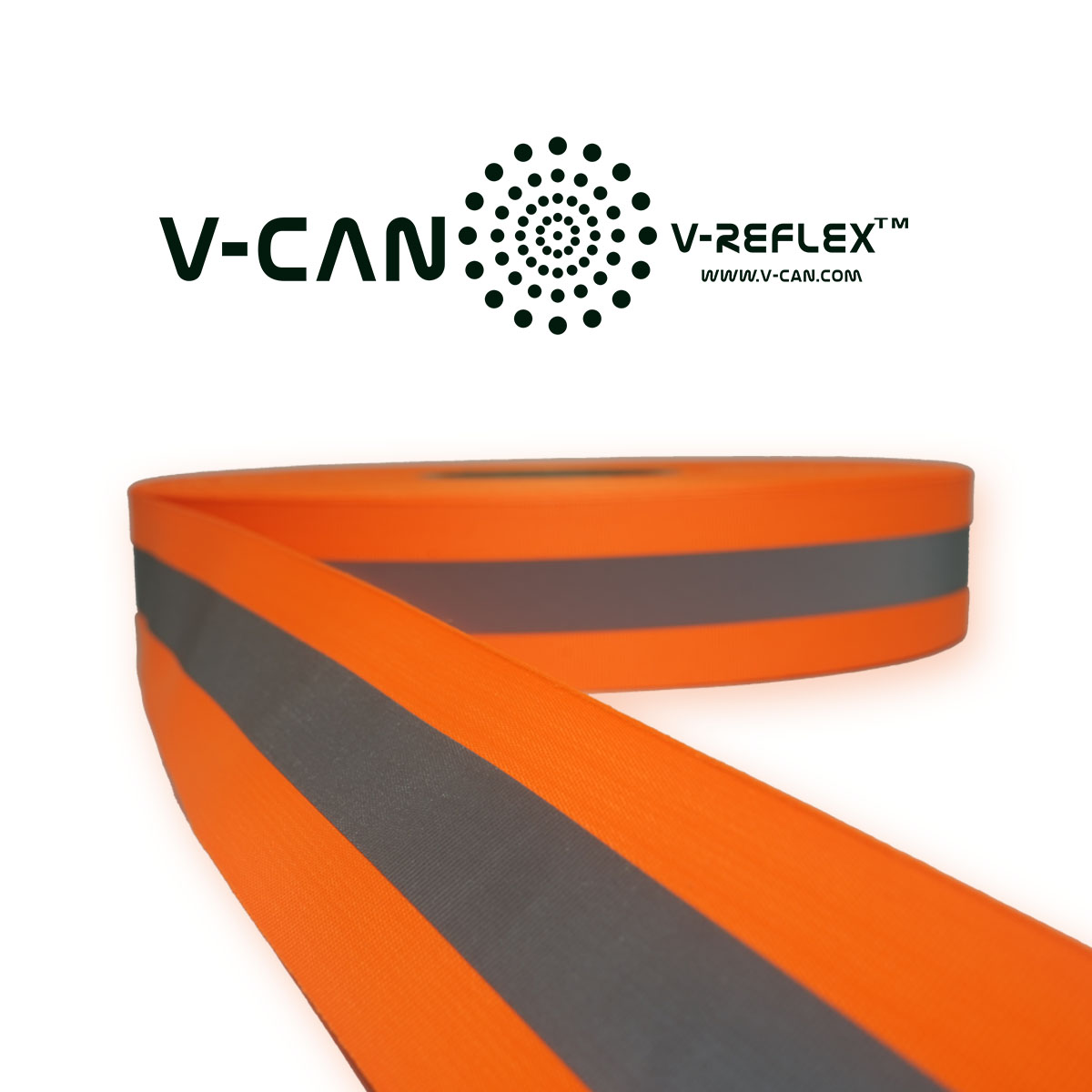

 Product Featrue:

  • Model Number: RT-FRHW506030-CTN2
  • Initial RA: >500 CPL
  • Micro glass bead, Non-oriental sensitive
  • Approved to EN ISO 20471
  • Approved to NFPA 1971
  • Approved to EN 469
  • Approved to OEKO-TEX 100
  • Backing Fabric:100% FR Treated Cotton
  • Backing Fabric Color: Fluorescent Orange Color + Silver Color + Fluorescent Orange Color
  • Centered Reflective Trim: Silver
  • Home Wash: 50 Cycles@60°C ISO 6330
  • Dry Clean: 30 Cycles per ISO 3175



This image for Image Layouts addon

Application

  • Firefighting apparel
  • Flame resistant occupational work wear
  • Trousers
  • Coats
  • Coveralls
  • Jackets
  • Waistcoats and trousers
  • Uniforms

Logo Printing

OEM Size

Perforated


Eco-Friendly Raw Materials

OEKO-TEX 100
  • OEKO-TEX 100 Certification
  • No Health Harmful Elements in Products

Customize Perforating Designs

Lightweight & Breathable
  • Customize Your Own Designs of Perforation.
  • Style of Perforation Not To Be Always The Same. Garment Designer, Fashion Makers Love This Very Much!

Third Parties Certify Performance

SATRA, TUV, CalCoast ...
  • Many Labs and Testing Agents Have Certified This Series of Reflective Tape

High Temperature Drying

Tumble Drying
  • 90 Degree Celsius Industrial Tumble Drying Applicable to All Items
  • Applying To Higher Than 100 Degree Celsius Industrial Tunnel Drying Will Decrease The Lifespan of This Series of FR Retro-Reflective Tape

Up-Lifting Brands

Your Logo on Frontside
  • Laser Marking Your Logos, Brands, Images,... On the Frontside of Reflective Tape.
  • Quality Garment Producers, Brands Owners, New Brands Advertisers, Brands Creators, ... Could Not Miss This

Increasing Sales

Your Logo on Backside
  • Print Your Logos, Brands, and Other Marketing Titles on The Backside of Reflective Tape.
  • Distributors, Wholesalers, Exclusive Agent, New Players in This Industry, Brands Advertisers, ... Could Not Miss This.
